Compare Cable Shield Types
Comparison of some old and new abbreviations, according to ISO/IEC 11801.
| Old Name | New Name | Cable Screening | Pair Shielding |
|---|---|---|---|
| UTP | U/UTP | None | None |
| STP | U/FTP | None | Foil |
| FTP | F/UTP | Foil | None |
| S-STP | S/FTP | Braiding | Foil |
| S-FTP | SF/UTP | Foil, Braiding | None |
| SFTP | Foil | Shield |
Understanding the Shield Type Codes
The code before the slash designates the shielding for the cable itself, while the code after the slash determines the shielding for the individual pairs.
- TP = Twisted Pair
- U = Unshielded
- F = Foil Shielding
- S = Braided Shielding
Note that different vendors and authors use different terminology. For example, STP has been used to denote STP-A, S/STP, and S/UTP.
Cable Shield Construction Examples

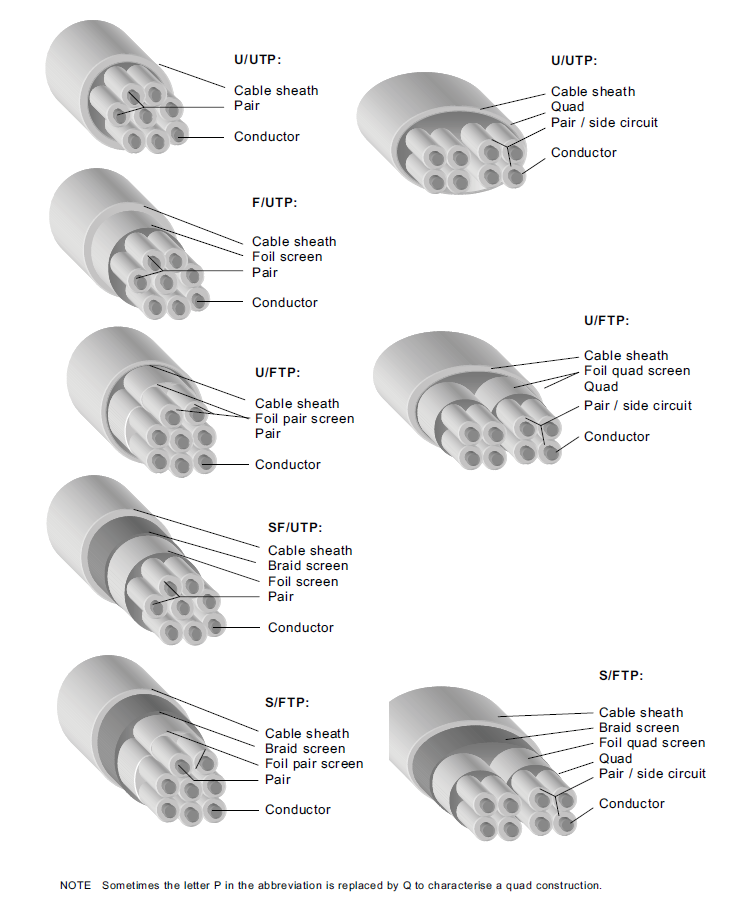

The illustrations below show the internal construction of the most common Ethernet cable shielding types.
